SPECIFICATIONS

Description

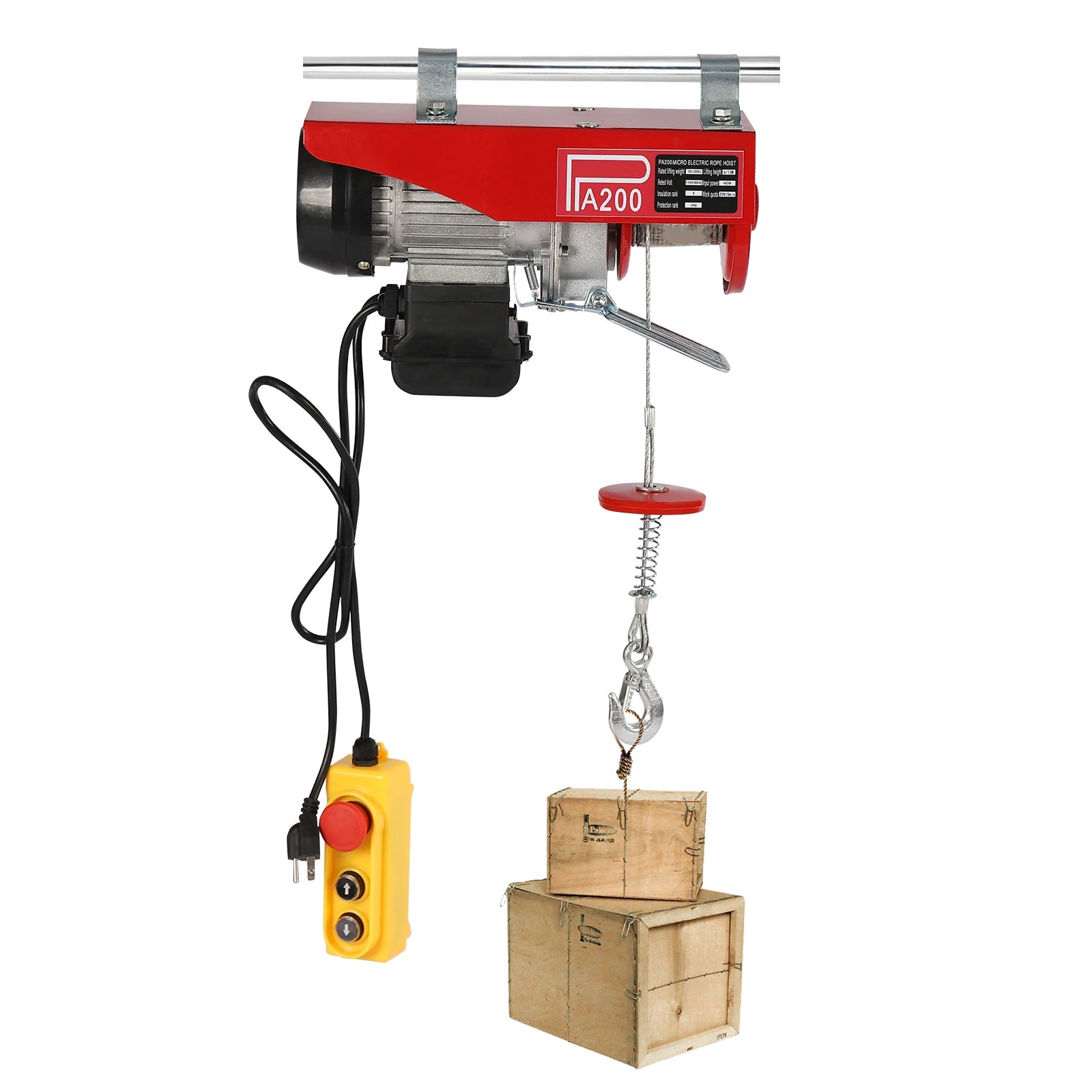

There are problems at work where things are so heavy that it is very difficult to move them purely by hand. The development of modern technology has brought great convenience to mankind, both in life and at work. The powerful motor and the sturdy wire rope provide a powerful lifting capacity and high work efficiency. It will be a great assistant for your lifting work!



Key Features

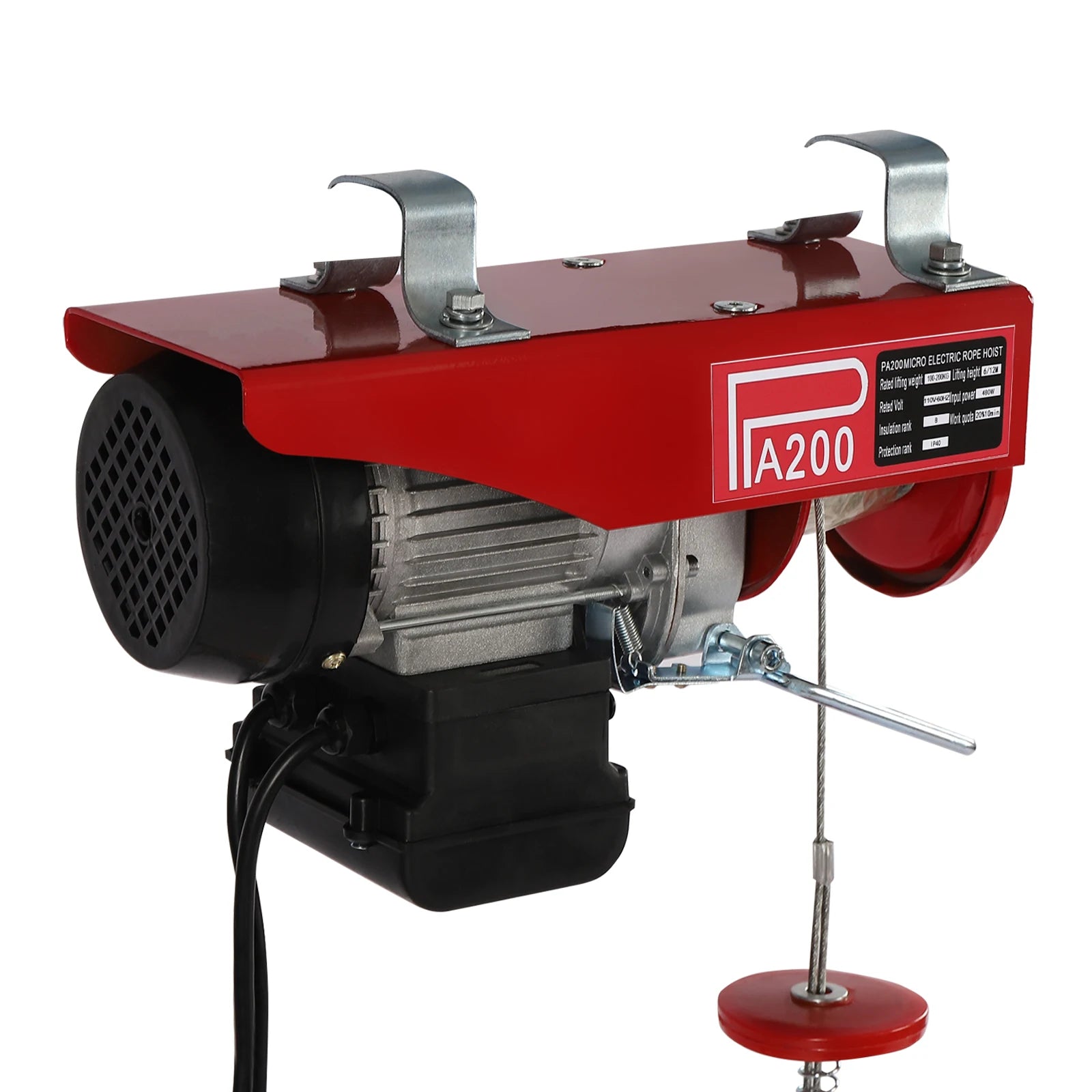

Robust and Durable: It features carbon steel stamped housing with a plastic spraying finish, braided galvanized carbon steel wire, and galvanized alloy steel hook, which has high hardness, ensuring a long service life.

Compact and Lightweight: Its proper size (9.5*4*4.7in) and weight (21.6lbs) allow the electric hoist to be easily placed or carried wherever it is needed.

Stable Performance: It adopts high-speed bearings that keep the bearing rotation gap unchanged for a long time use of the motor. It has a stable rotor axially, high motor force, and low noise, ensuring good working performance.

Safe Design: It is fitted with an anti-rush top limiter, it will automatically stop lifting when it touches the hook, avoiding damage to the machine if it is lifted too high, making it safe to use. In addition, the hook with latch provides further protection.

High Load Capacity: The strong wires and hooks guarantee a high loading capacity. The load capacity is 110lbs on a single rope with a lifting speed of 32.8ft/min and 220lbs on a double rope with 16.4ft/min.

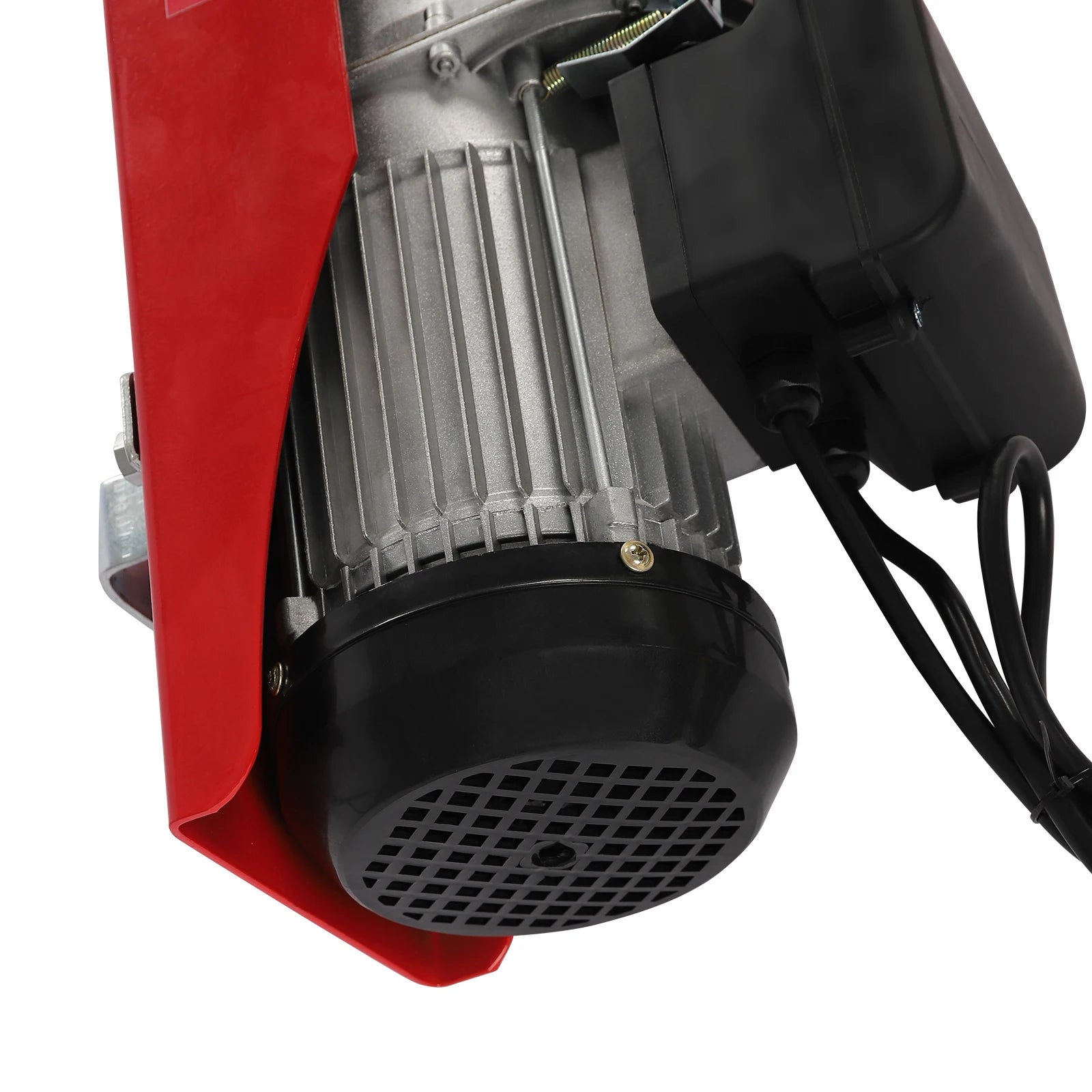

Strong Heat Dissipation: This electric hoist has a fan and mesh-type heat dissipation holes, which can quickly dissipate heat and reduce the risk of burning out the machine, ensuring the stable operation of the machine for a long time.

Pure Copper Motor: It adopts a high-powered pure copper motor(480W), with good heat dissipation and stability, providing strong power for lifting. In addition, it operates at low noise, giving you a more comfortable working environment.

Practical Lifting Straps: The package is equipped with two additional lifting straps for securing hard-to-hook goods, so you don't need to buy extra, which is economical and convenient.

Application

The electric hoist is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railways, construction, garages, ceilings, attics, barns, lofts, etc. for lifting regular or irregularly shaped objects. The electric hoist can be used for various lifting equipment, such as single column, wall column, crane, etc.

Specifications

Housing Material: Carbon Steel

Finish: Plastic Spray

Hook Material: Galvanised Alloy Steel

Cable Material: Galvanised Carbon Steel

Motor Housing Material: Aluminum

Motor Type: Pure Copper Motor

Color: Red

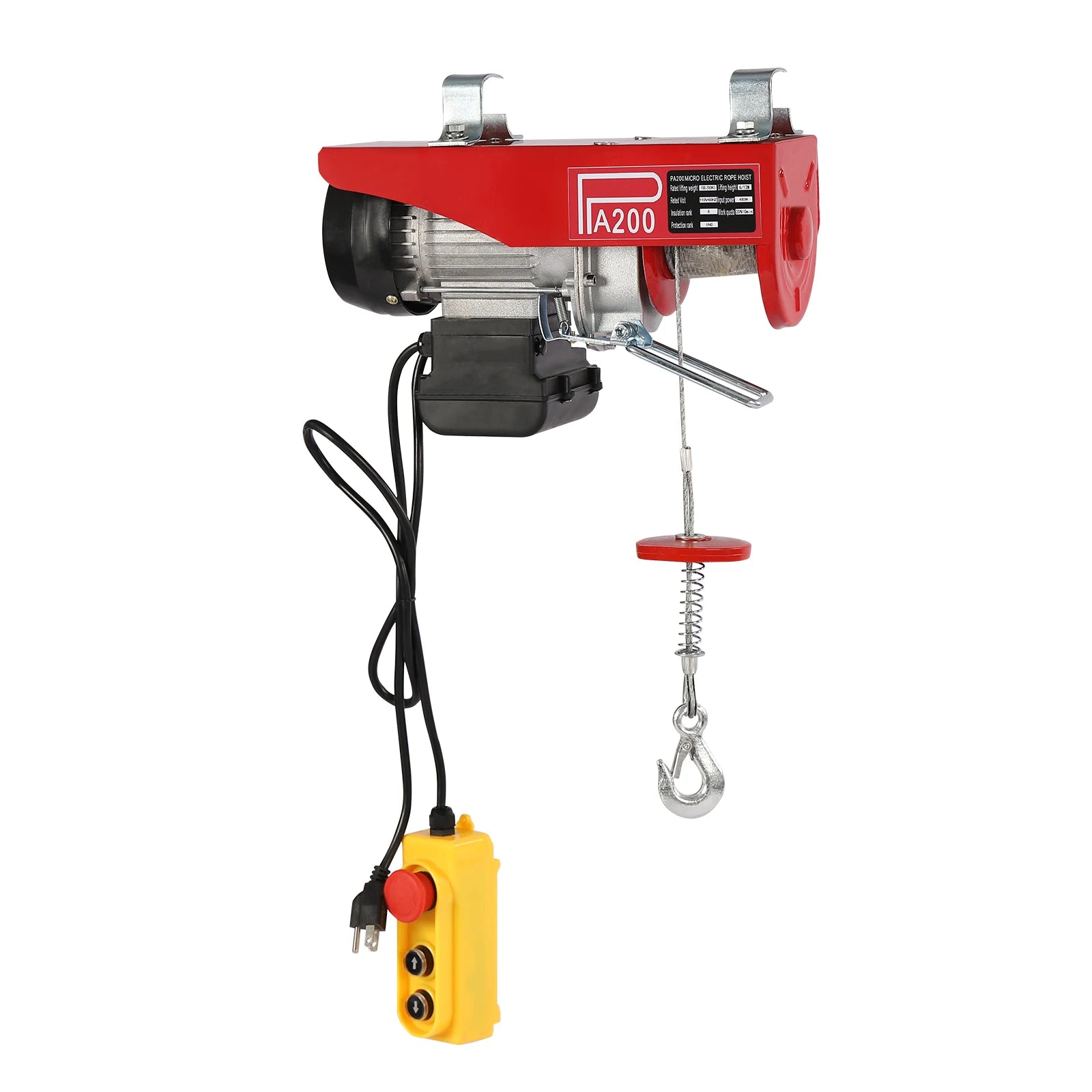

Model: PA100& PA200

Plug Type: US Standard

Voltage: 110V-60Hz

Power: 480W

Insulation Rank: B

Protection Rank: IP40

Load Capacity: 50kg/110lbs(Single Cable), 100kg/220lbs(Double Cable)& 100kg/220lbs(Single Cable), 200kg/440lbs(Double Cable)

Lifting Speed: 32.8ft/min (Single Cable) , 16.4ft/min (Double Cable)

Lifting Height: 12m/39.4ft(Single Cable), 6 m/20 ft(Double Cable)

Work Quota: 20%10min

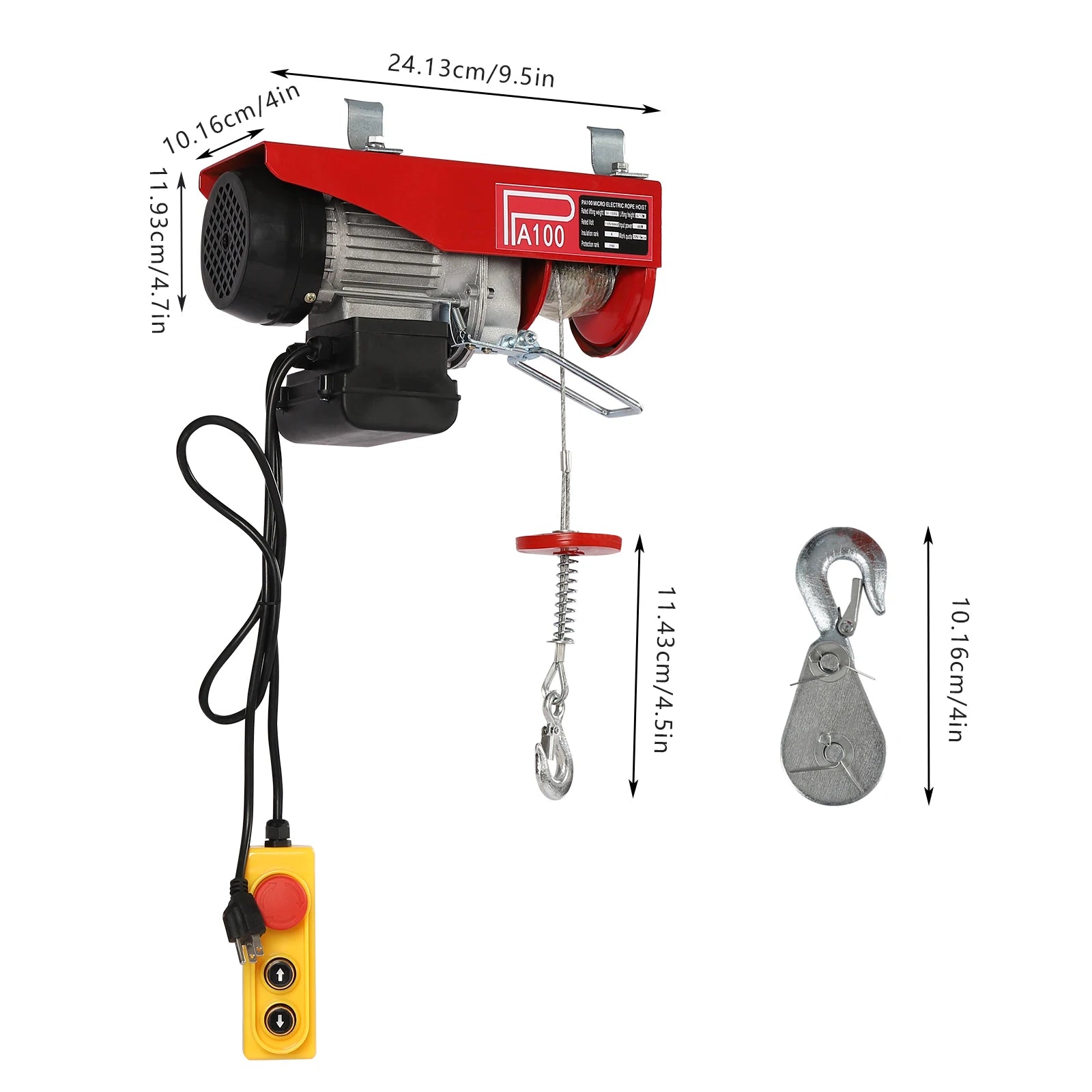

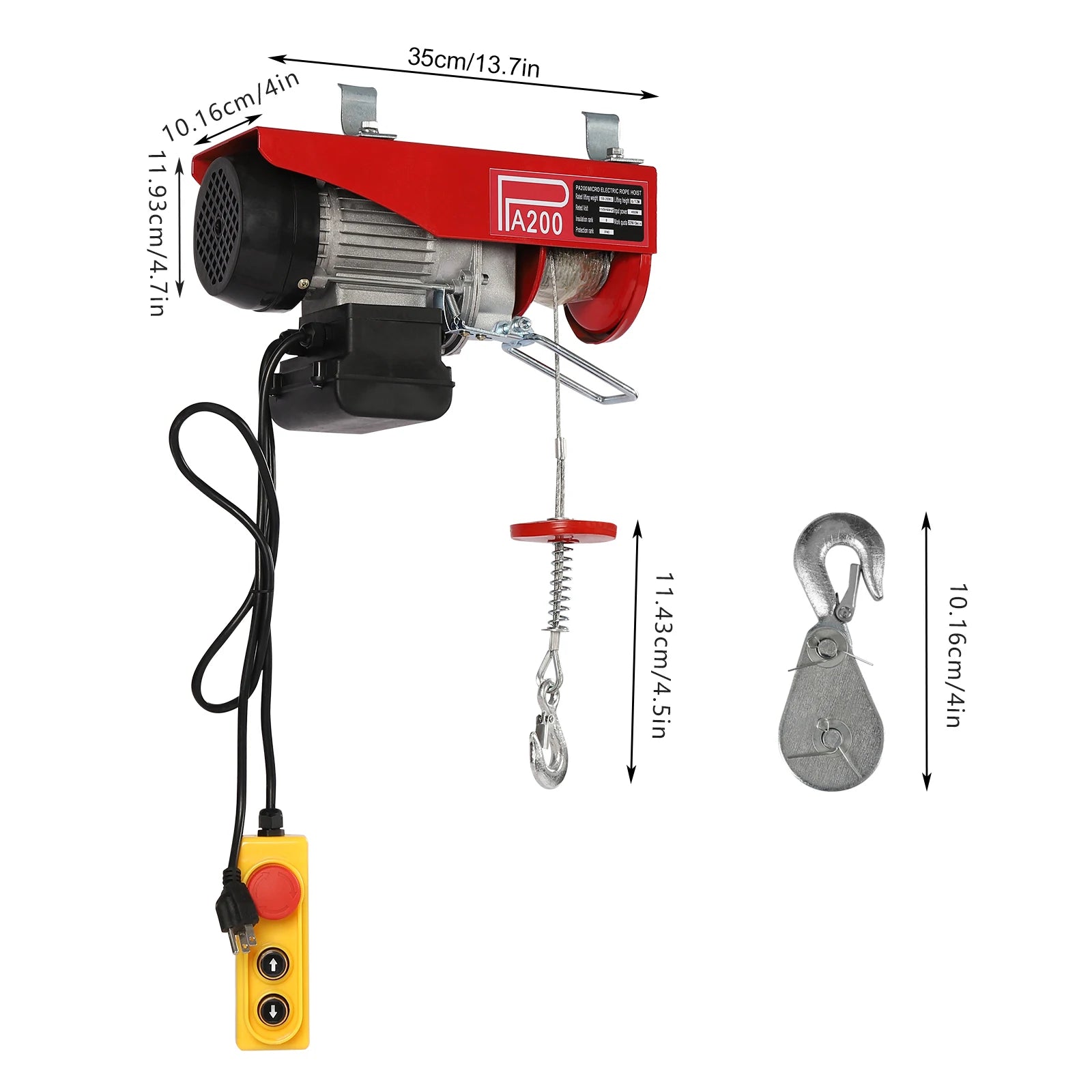

Product Size: 24*10*12cm/9.5*4*4.7in& 35*10*12cm/13.7*4*4.7in

Large Hook Length: 11.5cm/4.5in

Small Hook Length: 10cm/4in

Packing Size: 38*16*27cm/14.96*6.29*10.62in

Gross Weight: 9.8kg/21.6lbs
